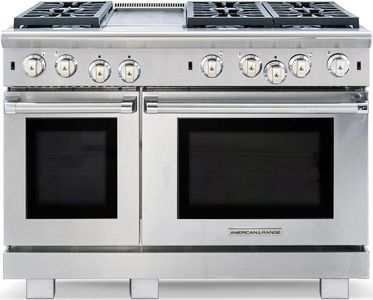

    American Range Cuisine 48" Stainless Steel Pro Style Gas Range


    Model #:

    ARR-648GD-N

    Model #: ARR-648GD-N
    291428
    American Range
    $9,549.00

    At a Glance

    Product Dimensions 37.5"h x 47.88"w x 29.94"d

    Balanced turbulent heat distribution is essential when baking, roasting, and dehydrating food. The American Range convection oven technology features a convection motor and louvered side panels to enhance uniform heat distribution throughout the large oven cavity.Read More

    $9,549.00

    What We Offer

    Protect Your Purchase
    None Selected
    Services
    None Selected
    SyncposQty 0

    Get to know this product.

    Product Overview

    Product Overview
    Convection Oven Technology

    Balanced turbulent heat distribution is essential when baking, roasting, and dehydrating food. The American Range convection oven technology features a convection motor and louvered side panels to enhance uniform heat distribution throughout the large oven cavity. The strategic placement of the convection fan ensures consistent heat distribution even when challenged with cooking the largest turkey, ham or roast.

    Convection Oven Is Green Technology

    The highly efficient design of the Convection Oven uses less gas versus a standard oven.

    Range Top Features

    Variable infinite flame settings for all sealed top burners.

    Automatic, electronic ignition ensures re-ignition in the event the flame goes out, even on the lowest burner setting.

    Continuous commercial-grade cast iron grates allow for easy transfer of pots and pans across the entire cooking surface.

    Sealed single piece tooled porcelainized cook top can hold more than a gallon of spills.

    Analog controls provide easy, push and turn operation.

    Blue light indicates oven functions.

    Heavy metal die-cast black satin knobs with chrome bezels.

    Stainless steel Island Back trim included and installed.

    Oven Features

    Multiple functions include: Standard Bake, Convection Bake, Infrared Broil and Fan modes.

    Convection System optimizes uniform air flow.

    Two chrome plated heavy duty racks with 4 positions on heavy chrome side supports.

    Accommodates full size commercial sheet pan.

    Front panel switch controls oven lighting for optimal visibility.

    Oven front construction is a durable, precision-made one piece frame.

    Useful Documents
    Specifications

    General Specs

    ColorStainless Steel
    Air FryNo
    Door Panel TypeGlass
    Appliance Fit Width (in.)48
    Total Capacity (cu. ft.)6.8
    Color Finish NameStainless Steel
    CollectionCuisine
    Number of Elements Burner Cooking Zones7
    ADA CompliantNo
    Range TypePro-Style
    Number of Elements/Burners7
    Fuel TypeNatural Gas
    Number of Oven(s)Double
    Depth (in.)29.94
    Height (in.)37.5
    Width (in.)47.88
    Oven Cleaning MethodManual Clean

    Overview

    Overall Oven Capacity2.4 Cu. Ft. (18” oven) - 4.4 Cu. Ft. (30” oven)
    Burner Cooking Zones6 Burners & Griddle
    Total Gas Connection Rating162,000 BTU
    Oven Dimensions14-1/2” W x 19” D x 15” H (18” oven) 26-1/2” W x 19” D x 15” H (30” oven)
    Griddle Burner Rating20,000 BTU for every 11” section
    Infrared Broiler17,000 BTU each oven
    Oven Bake Burner28,000 BTU each oven
    Electrical Supply240 VAC 60 AMP 60 Hz Single Phase
    Gas Supply7” W.C. Natural, 11” W.C. Propane
    IgnitionAutomatic; Electronic
    Re-IgnitionYes
    Grate StylingContinuous
    Grate MaterialCast Iron
    Burner TypeSealed
    Handle TypeProfessional
